[ASK] K800i Problem

[kaka.enine]

Dear Master,
Really Need your help for some who can share the experiance..

I got k800i 2 pieces from a friend, this hp can't turn on normally.
When i tried to turn on it, only vibrate a while and then no action after all.

i tried to flash it the hp to the normal fw coz after analyze this hp, looks like someone have flashed it with other fw before it arrive at my hand.

really need your help bro..
this is the identity of those 2 hp

HP COKLAT >> this is only a label to differentiate the hp

PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
FLASH ID check:897E
Flash props sent ok
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35731501463510 CERT:RED
FLASH CID:52 COLOR:RED

Model (from GDFS):K800i
Brand:Generic
MAPP CXC article: 2007-12-13 16:25 CXC1722434_TEMS
MAPP CXC version: R2B
Language Package: TEMS
CDA article: CDA102734
CDA version: R1B
Default article: cxc1722435
Default version: R2B
PROVIDER: 000-00
SIMLOCKS NOT DETECTED

RESTORATION FILE NOT PRESENT
"2007-12-13_07-12-13 16:25 CXC1722434_TEMS"
YOU MUST PERFORM FULL FLASHING
WHEN "ALTERNATIVE SECURITY BYPASS" ENABLED

BYPASS PACKAGE NOT PRESENT
"2007-12-13_07-12-13 16:25 CXC1722434_TEMS.zip"
YOU MUST FLASH SUPPORTED FIRMWARE
TO USE "ALTERNATIVE SECURITY BYPASS"

SECURITY UNITS BACKUP CREATED.
Elapsed: 19 secs.


HP ANCUR >> this is only a label to differentiate the hp

PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
FLASH ID check:897E
Flash props sent ok
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35975701279000 CERT:RED
FLASH CID:52 COLOR:RED

Model (from GDFS):K800i
Brand:Generic
MAPP CXC article: 2007-01-29 15:40 CXC1722434_TEMS
MAPP CXC version: R1B
Language Package: TEMS
CDA article: CDA102734
CDA version: R1A
Default article: cxc1722435
Default version: R1B
PROVIDER: 000-00
SIMLOCKS NOT DETECTED

RESTORATION FILE NOT PRESENT
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS"
YOU MUST PERFORM FULL FLASHING
WHEN "ALTERNATIVE SECURITY BYPASS" ENABLED

BYPASS PACKAGE NOT PRESENT
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS.zip"
YOU MUST FLASH SUPPORTED FIRMWARE
TO USE "ALTERNATIVE SECURITY BYPASS"

SECURITY UNITS BACKUP CREATED.
Elapsed: 7 secs.

my question is,
what is the original CID of this HP, 51 or 52??
i use setool to flash those 2 HP, what kind of FW will work properly with those 2 HP??
and what can i do to solve this problem??

Thanks a lot for you brother..

[senter]

Dear Master,
Really Need your help for some who can share the experiance..

I got k800i 2 pieces from a friend, this hp can't turn on normally.
When i tried to turn on it, only vibrate a while and then no action after all.

i tried to flash it the hp to the normal fw coz after analyze this hp, looks like someone have flashed it with other fw before it arrive at my hand.

really need your help bro..
this is the identity of those 2 hp

HP COKLAT >> this is only a label to differentiate the hp

PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
FLASH ID check:897E
Flash props sent ok
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35731501463510 CERT:RED
FLASH CID:52 COLOR:RED

Model (from GDFS):K800i
Brand:Generic
MAPP CXC article: 2007-12-13 16:25 CXC1722434_TEMS
MAPP CXC version: R2B
Language Package: TEMS
CDA article: CDA102734
CDA version: R1B
Default article: cxc1722435
Default version: R2B
PROVIDER: 000-00
SIMLOCKS NOT DETECTED

RESTORATION FILE NOT PRESENT
"2007-12-13_07-12-13 16:25 CXC1722434_TEMS"
YOU MUST PERFORM FULL FLASHING
WHEN "ALTERNATIVE SECURITY BYPASS" ENABLED

BYPASS PACKAGE NOT PRESENT
"2007-12-13_07-12-13 16:25 CXC1722434_TEMS.zip"
YOU MUST FLASH SUPPORTED FIRMWARE
TO USE "ALTERNATIVE SECURITY BYPASS"

SECURITY UNITS BACKUP CREATED.
Elapsed: 19 secs.


HP ANCUR >> this is only a label to differentiate the hp

PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
FLASH ID check:897E
Flash props sent ok
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35975701279000 CERT:RED
FLASH CID:52 COLOR:RED

Model (from GDFS):K800i
Brand:Generic
MAPP CXC article: 2007-01-29 15:40 CXC1722434_TEMS
MAPP CXC version: R1B
Language Package: TEMS
CDA article: CDA102734
CDA version: R1A
Default article: cxc1722435
Default version: R1B
PROVIDER: 000-00
SIMLOCKS NOT DETECTED

RESTORATION FILE NOT PRESENT
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS"
YOU MUST PERFORM FULL FLASHING
WHEN "ALTERNATIVE SECURITY BYPASS" ENABLED

BYPASS PACKAGE NOT PRESENT
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS.zip"
YOU MUST FLASH SUPPORTED FIRMWARE
TO USE "ALTERNATIVE SECURITY BYPASS"

SECURITY UNITS BACKUP CREATED.
Elapsed: 7 secs.

my question is,
what is the original CID of this HP, 51 or 52??
i use setool to flash those 2 HP, what kind of FW will work properly with those 2 HP??
and what can i do to solve this problem??

Thanks a lot for you brother..

You give 2 different log's from 2 different K800 phones ?
All K800 CDA's are CDA1025XX, your CDA102734 ???
Maybe someone try CDA from other phone OR maybe try change IMEI ???

You can use lastest software version for K800 CID52: Downloads > Firmware > K800 > RED52 > R8BF003_RED52
CDA (custpack) from here: Downloads > Custom Files > k800custpack

What language you will see here (Description of languages Platform DB2012 - DB2020 - PNX5230) : http://www.topsony.com/forum/cmps_index.php?page=info_lenguaje

Example:

K800_R8BF003_MAIN_GENERIC_WI_RED52
K800_R8BF003_FS_EUROPE_4_RED52
HB1-06_Gen_CDA102568_201_R2A_GENERIC_EUROPE_4

OR

K800_R8BF003_MAIN_GENERIC_WI_RED52
K800_R8BF003_FS_BALTIC_RED52
HB1-06_Gen_CDA102568_1_R8A_GENERIC_BALTIC

[kaka.enine]

You give 2 different log's from 2 different K800 phones ?
All K800 CDA's are CDA1025XX, your CDA102734 ???
Maybe someone try CDA from other phone OR maybe try change IMEI ???

You can use lastest software version for K800 CID52: Downloads > Firmware > K800 > RED52 > R8BF003_RED52
CDA (custpack) from here: Downloads > Custom Files > k800custpack

What language you will see here (Description of languages Platform DB2012 - DB2020 - PNX5230) : http://www.topsony.com/forum/cmps_index.php?page=info_lenguaje

Example:

K800_R8BF003_MAIN_GENERIC_WI_RED52
K800_R8BF003_FS_EUROPE_4_RED52
HB1-06_Gen_CDA102568_201_R2A_GENERIC_EUROPE_4

OR

K800_R8BF003_MAIN_GENERIC_WI_RED52
K800_R8BF003_FS_BALTIC_RED52
HB1-06_Gen_CDA102568_1_R8A_GENERIC_BALTIC

Dear Brother...
i've tried to use download this fw, i use this :
K800_R8BF003_FS_C_ASIA_RED52.fbn
K800_R8BF003_MAIN_GENERIC_WI_RED52.mbn
HB1-06_Gen_CDA102568_7_R8A_GENERIC_C_ASIA

but, when start to FLASH it, appear error mssg on setools like this..


PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35975701279000 CERT:RED
FLASH CID:52 COLOR:RED
PATCH:061205 1523 HANCXC9876543210_DB2020_MEM_PATCHER_R2A006 0
LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
FLASH ID check:897E
Flash props sent ok
LDR:070904 1245 AN2CXC1250562_DB2020_CSLOADER_R3A013
loader startup: executed
loader GDFS startup: executed
loader filesystem startup: executed
loader unlock: executed
BYPASS PACKAGE ABSENT FOR THAT FIRMWARE.
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS"
Elapsed: 39 secs.


and then operational was stopped..
so i thought it wasn't success yet.
and the K800i is totally OFF rite now..

any clue to solve it bro???

need suggest..
Thanks a lot for the solution.

[senter]

Dear Brother...
i've tried to use download this fw, i use this :
K800_R8BF003_FS_C_ASIA_RED52.fbn
K800_R8BF003_MAIN_GENERIC_WI_RED52.mbn
HB1-06_Gen_CDA102568_7_R8A_GENERIC_C_ASIA

but, when start to FLASH it, appear error mssg on setools like this..


PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35975701279000 CERT:RED
FLASH CID:52 COLOR:RED
PATCH:061205 1523 HANCXC9876543210_DB2020_MEM_PATCHER_R2A006 0
LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
FLASH ID check:897E
Flash props sent ok
LDR:070904 1245 AN2CXC1250562_DB2020_CSLOADER_R3A013
loader startup: executed
loader GDFS startup: executed
loader filesystem startup: executed
loader unlock: executed
BYPASS PACKAGE ABSENT FOR THAT FIRMWARE.
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS"
Elapsed: 39 secs.


and then operational was stopped..
so i thought it wasn't success yet.
and the K800i is totally OFF rite now..

any clue to solve it bro???

need suggest..
Thanks a lot for the solution.

Why you try bypass phone without apply quick access patch before?
Flash only Main again and apply quick access patch, then you can apply/remove other patches easy.

[kaka.enine]

Why you try bypass phone without apply quick access patch before?
Flash only Main again and apply quick access patch, then you can apply/remove other patches easy.

Dear Brother,
is use Setools software,
sorry a dummy question,
quick access patch > Is this one of support file that i need to insert when i flash the Hp again??
or some option mark on Setool software setting menu?? coz i've look at the setting menu and missed to find quick access patch mark??
Really sorry if my question looks like stupid one, but i'm really new comer to use this tools.

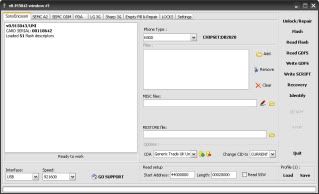

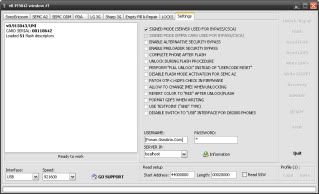

this my Setools menu,




Thanks for yur totally support bro'..

[senter]

Use Setool2lite1.11:

[riders4sia]

Dear Brother...
i've tried to use download this fw, i use this :
K800_R8BF003_FS_C_ASIA_RED52.fbn
K800_R8BF003_MAIN_GENERIC_WI_RED52.mbn
HB1-06_Gen_CDA102568_7_R8A_GENERIC_C_ASIA

but, when start to FLASH it, appear error mssg on setools like this..


PHONE STATE: "RETAIL"
FLASH CID: 0052
Speed:921600
OTP: LOCKED:1 CID:51 PAF:1 IMEI:35975701279000 CERT:RED
FLASH CID:52 COLOR:RED
PATCH:061205 1523 HANCXC9876543210_DB2020_MEM_PATCHER_R2A006 0
LDR:061201 1314 HANCXC1329129_DB2020_FLASHLOADER_R2A005
FLASH ID check:897E
Flash props sent ok
LDR:070904 1245 AN2CXC1250562_DB2020_CSLOADER_R3A013
loader startup: executed
loader GDFS startup: executed
loader filesystem startup: executed
loader unlock: executed
BYPASS PACKAGE ABSENT FOR THAT FIRMWARE.
"2007-01-29_07-01-29 15:40 CXC1722434_TEMS"
Elapsed: 39 secs.


and then operational was stopped..
so i thought it wasn't success yet.
and the K800i is totally OFF rite now..

any clue to solve it bro???

need suggest..
Thanks a lot for the solution.

Use this tutorial : XS++ 3.1 Guide-Flashing, Customizing, Recovering - Top Sony Forums

[riders4sia]

well your image can't be verified as it compression is to high that cause BLUR, please reupload again with high quality pics.
